Network error in seafile 12.0 docker with nginx

Seafile Server
1

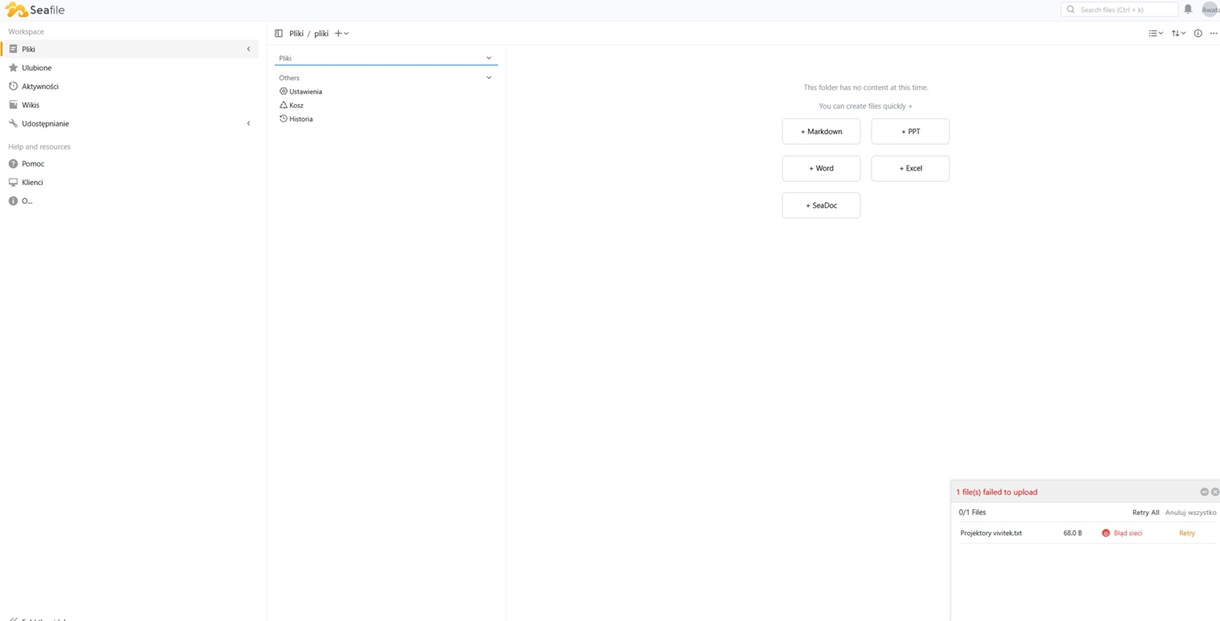

Hello when I want to send a file to the cloud I get a network error . As in the attached image

blad sieci
blad sieci1220×621 28.7 KB

Settings in nginx

server {
listen 8443 ssl;
ssl_certificate /etc/pki/nginx/server.crt;
ssl_certificate_key /etc/pki/nginx/server.key;

server_name softziger.com;

proxy_set_header X-Forwarded-For $remote_addr;

location / {
proxy_pass http://192.168.02:8000;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Host $server_name;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_read_timeout 1200s;

client_max_body_size 0;

access_log      /var/log/nginx/seahub.access.log;
error_log       /var/log/nginx/seahub.error.log;

}

location /seafhttp {
rewrite ^/seafhttp(.*)$ $1 break;
proxy_pass http://192.168.0.2:8082;
client_max_body_size 0;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 36000s;
proxy_read_timeout 36000s;
proxy_send_timeout 36000s;
}

location /seafdav {
fastcgi_pass 192.168.0.2:8080;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
fastcgi_param PATH_INFO $fastcgi_script_name;
fastcgi_param SERVER_PROTOCOL $server_protocol;
fastcgi_param QUERY_STRING $query_string;
fastcgi_param REQUEST_METHOD $request_method;
fastcgi_param CONTENT_TYPE $content_type;
fastcgi_param CONTENT_LENGTH $content_length;
fastcgi_param SERVER_ADDR $server_addr;
fastcgi_param SERVER_PORT $server_port;
fastcgi_param SERVER_NAME $server_name;
fastcgi_param REMOTE_ADDR $remote_addr;

client_max_body_size 0;
access_log      /var/log/nginx/seafdav.access.log;
error_log       /var/log/nginx/seafdav.error.log;

}
}

In seahub_settings.py I added the following
SERVICE_URL = “https://mydomian.com:8443”
ALLOWED_HOSTS = [‘.mydomain.com’]
FILE_SERVER_ROOT = ‘http://mydomain.com:8443/seafhttp’
CSRF_TRUSTED_ORIGINS = [‘https://mydomain.com:8443’]

What can i still do

Please help greetings

2

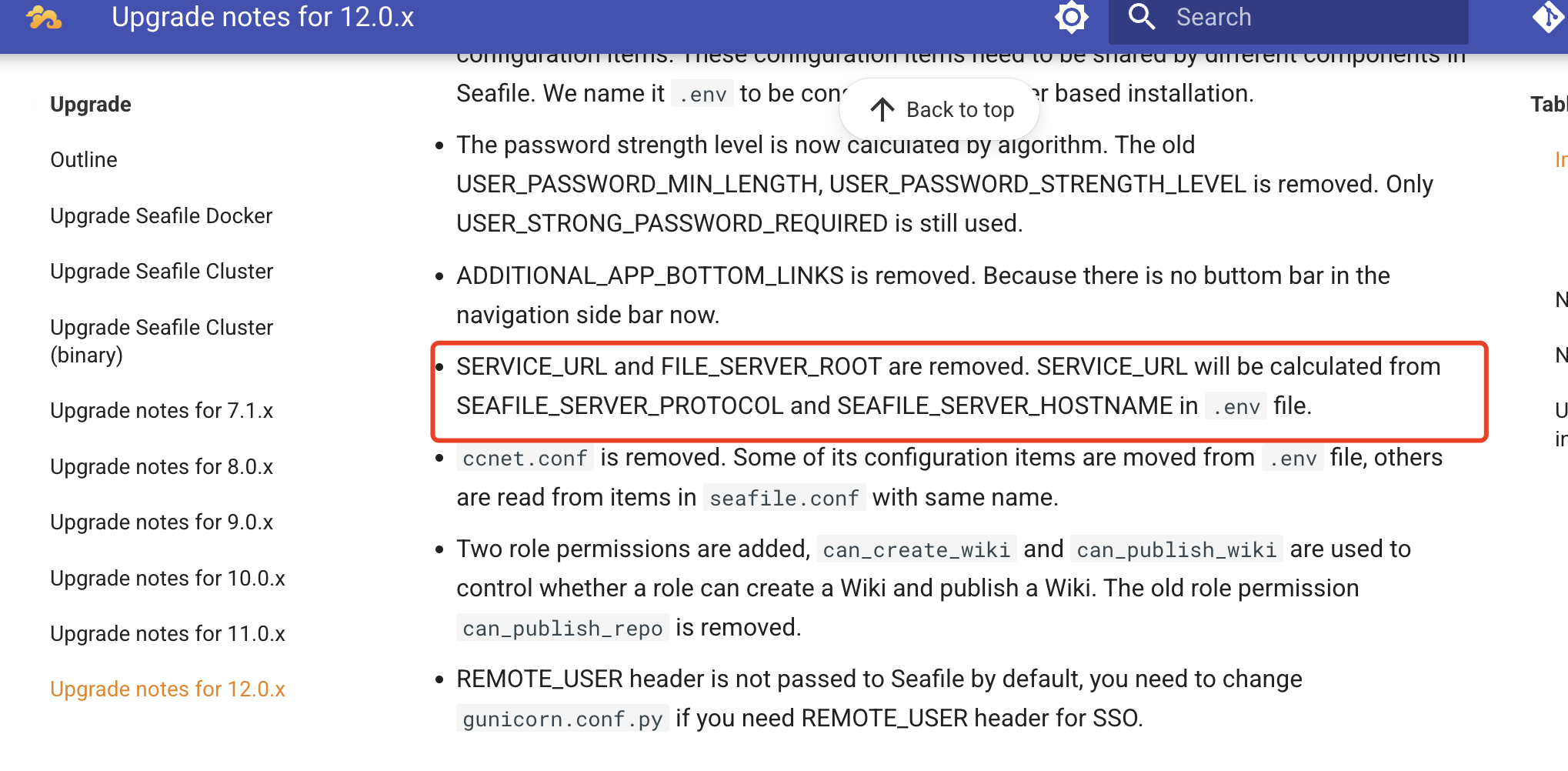

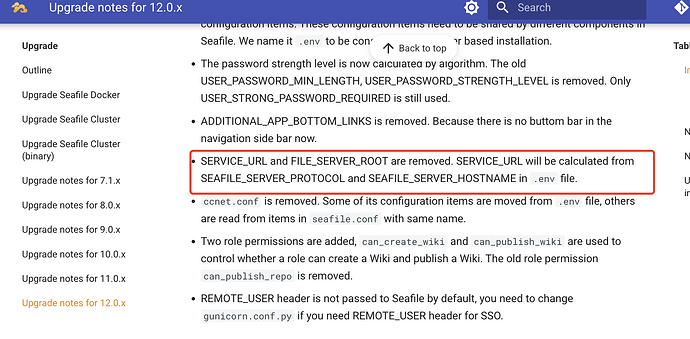

SERVICE_URL and FILE_SERVER_ROOT is no longer used in Seafile version 12.0.

image2038×1002 340 KB

I suggest you correct this part first. Then you can check chrome’s developer console to find detailed error about the network problem.

3

Hello,thank you for your interest in the topic.
From seahub_settings.py I removed
SERVICE_URL = “https://mydomain.com:8443”
FILE_SERVER_ROOT = ‘https://mydomain.com:8443/seafhttp’

in the console I saw when uploading the file that:
“https://mydomain.com:8443/library/77665e01-aeec-4c25-a618-1d5180eb40df/pliki/” - this path is correct

here is not the correct path
“http://mydomain.com/seafhttp/upload-aj/f8f18b4a-19e0-414d-b3bd-56e3f18df”

It looks like there is a redirection error in the nginx proxy server.

How can I solve this greetings.

4

Do you correctly set the two environment variables: SEAFILE_SERVER_PROTOCOL and SERAFILE_SERVER_HOSTNAME ?

5

This is what’s set in the .eny file:
SEAFILE_SERVER_HOSTNAME=mydomain.com
SEAFILE_SERVER_PROTOCOL=http

in the caddy.yml file
ports:

  • 8000:80
  • 4430:443

Ports 443 are occupied by another service,
and port 8443 is occupied by the nginx server.

6

If you set

SEAFILE_SERVER_HOSTNAME=mydomain.com
SEAFILE_SERVER_PROTOCOL=http

Then Seafile will use the URL http://mydomain.com/seafhttp/xxxx to upload files, exactly following your settings.

I don’t quite understand what wrong in your setup.

7

I think I might see the problem. @Ziger it looks like your reverse proxy is on port 8443 instead of the usual 80 or 443. So I think your seafile is either at http://mydomain.com:8443 or https://mydomain.com:8443.

If that’s the case, you need SEAFILE_SERVER_PROTOCOL to be right for how you are connecting (http or https), and SEAFILE_SERVER_HOSTNAME to have the name, including the port. So instead of SEAFILE_SERVER_HOSTNAME=mydomain.com use SEAFILE_SERVER_HOSTNAME=mydomain.com:8443.

8

Hello, thank you for your help. I want to achieve https encryption on port 8443. I used Nginx for this purpose. Since the attempt to redirect ports through the server failed when sending files, I disabled the Nginx proxy server to simplify the configuration. The current configuration is as follows.

In the .env file
SEAFILE_SERVER_HOSTNAME=mydomain.com
SEAFILE_SERVER_PROTOCOL=http
in the caddy.yml file, I changed the ports
- 8000:80
- 4430:443
in the seahub_settings.py file
ALLOWED_HOSTS = [‘.mydomain.com’]
CSRF_TRUSTED_ORIGINS = [‘https://mydomain.com:8443’] - I didn’t change this I don’t think it matters.

I stopped and started docker compose. After restarting, I can log in
to the website http://mydomain.com:8000 but I still get the same error when sending a file.

http://mydomain.com/seafhttp/upload-aj/6b136e9e-481f-4813-b3f9-a71eea119b5f?ret-json=1

In my opinion, it should look like this:

http://mydomain.com:8000/seafhttp/upload-aj/6b136e9e-481f-4813-b3f9-a71eea119b5f?ret-json=1

In Docker seafile, the caddy proxy is installed by default and its configuration should be caddy.yml

-80:80
-443:433

but for me this configuration is not acceptable. How can this be solved?

Translated with DeepL.com (free version)

9

You should change SEAFILE_SERVER_HOSTNAME to mydomain.com:8000 if you want the web interface to use http://mydomain.com:8000 prefix in URL to upload files.

In short, SEAFILE_SERVER_HOSTNAME and SEAFILE_SERVER_PROTOCOL controls the URL of the web interface to upload files.

10

Hello, I have configured it according to your instructions.

SEAFILE_SERVER_HOSTNAME=http://mydomain.com:8000
SEAFILE_SERVER_PROTOCOL=http

After stopping and starting Docker,

I entered the link into the browser:
http://mydomain.com:8000/

The browser does not display anything. There is no login page.
The entire page is blank.

11

How about change SEAFILE_SERVER_HOSTNAME to mydomain.com:8000, removing the http part?

12

When set to
SEAFILE_SERVER_HOSTNAME= mydomain.com:8000,

the browser reports
Unable to connect

When set to
SEAFILE_SERVER_HOSTNAME=http://mydomain.com:8000,

the browser does not display anything. There is no login page.
The entire page is blank.
